- Specification
- Features & Benefits
Product Type

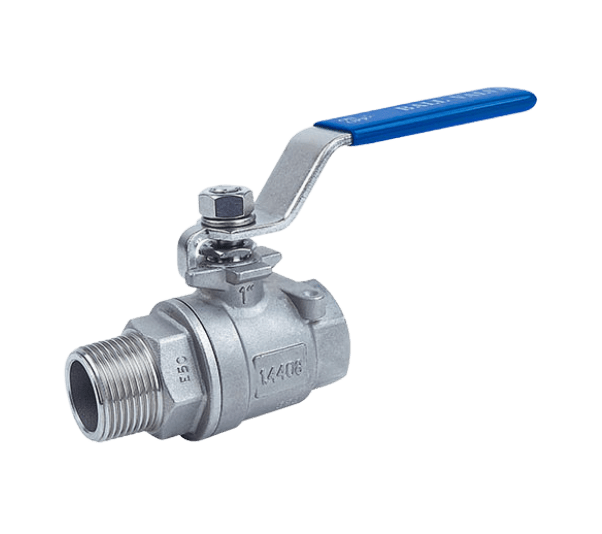

2-PC Ball Valve Threaded End
Model
VS-203
Size Range
1/4” ~ 2”
Operation
Lever Handle
Pressure Rating
1000PSI
Body Material
ASTM A351 CF8M / ASTM A216 WCB
Port
Full Port
Ball Material
ASTM A351 CF8M / ASTM A351 CF8
End Connection
Threaded End - Female x Male
Seat Material
PTFE
Designs
Investment Casting Made / Blow-out Proof Stem / Mounting Pad
Stem Material
AISI 316
Options
Locking device / Drilled and Tapped Mounting Pad
Applications
Process, Pipeline, OEM Equipment
- Specialized Female x Male Connection designed to streamline pipeline assembly and eliminate the need for additional pipe nipples, making it an ideal space-saving solution for compact OEM equipment.
- Material Selection offering ASTM A351 CF8M (Stainless Steel) or ASTM A216 WCB (Carbon Steel) bodies via precision investment casting, ensuring optimal performance across diverse corrosive or high-stress environments.
- Maximum Flow Efficiency engineered with a Full Port design to eliminate pressure drop, paired with reliable PTFE seats for a bubble-tight, leak-free seal up to a 1000 PSI pressure rating.
- Enhanced System Safety equipped with a rugged AISI 316 blow-out proof stem, actively preventing stem ejection during dangerous pressure surges in industrial pipelines.
- Automation-Ready Architecture featuring an integrated Mounting Pad (with options for a drilled and tapped configuration) for seamless actuator integration, plus an optional locking device on the lever handle for secure manual control.
This 2pc stainless steel ball valve from VALTEK (Shanghai), a trusted China valve manufacturer, is ideal for any demanding process or system, offering durability, efficiency, and reliable performance.
