- Specification
- Features & Benefits
Product Type

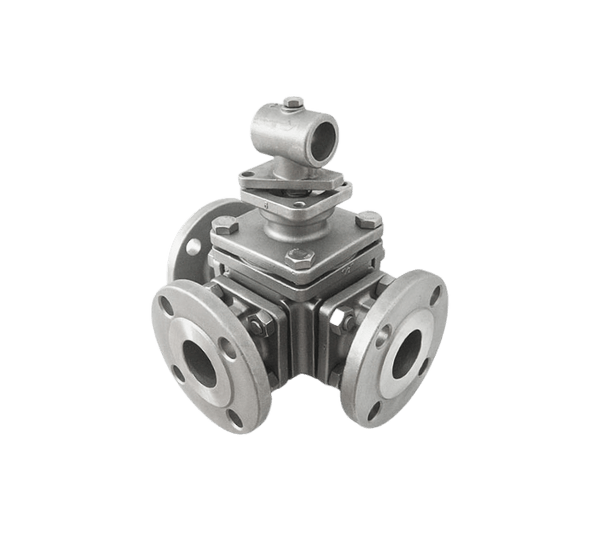

3-WAY Ball Valve Flanged End
Model
VS-FV3W
Size Range
1/2” ~ 5”
Operation
Lever / T handle
Pressure Rating
ANSI 150LBS
Body Material
ASTM A351 CF8M
Port
Full Port
Ball Material
ASTM A351 CF8M
End Connection
Flanged End
Seat Material
RPTFE
Designs
Investment Casting Made / Blow-out Proof Stem / Anti-Static device / Direct Mounting Pad ISO 5211 / Solid Ball / L port, T port, X port
Stem Material
AISI 316
Options
Locking device / Flange DIN PN16 / 4-WAY Ball Valve
Applications
Process, Pipeline, OEM Equipment
- Multi-Port Flow Distribution featuring versatile L-port, T-port, and X-port patterns paired with a durable solid ball design, delivering smooth diversion, blending, and tight shut-off across critical pipeline junctions.
- Unrestricted Flow Capacity engineered with a Full Port flow path from 1/2” to 5”, minimizing line turbulence and head loss under ANSI 150LBS working pressures.
- Direct Automation Platform equipped with an integral ISO 5211 Direct Mounting Pad, facilitating fast, rigid mounting of pneumatic and electric actuators without external bracket kits.
- Intrinsically Safe Construction incorporating an AISI 316 blow-out proof stem and an integrated Anti-Static device, ensuring system grounding and preventing static ignition in flammable or volatile fluid operations.
- Corrosion-Resistant Industrial Casting precision investment cast in ASTM A351 CF8M stainless steel with resilient RPTFE seats, offering structural integrity and bubble-tight sealing against corrosive process media.
This 3WAY multiport stainless steel ball valve from VALTEK (Shanghai), a trusted China valve manufacturer, is ideal for any demanding process or system, offering durability, efficiency, and reliable performance.
