- Specification
- Features & Benefits
Product Type

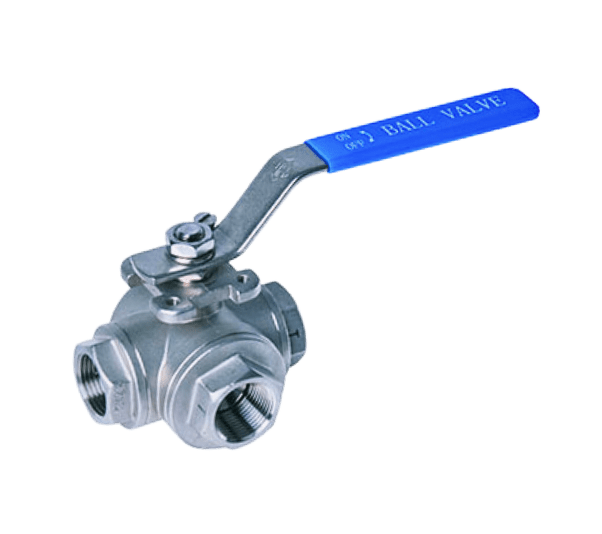

3-WAY Ball Valve Threaded End
Model
VS-V3W
Size Range
1/4” ~ 2”
Operation
Lever Handle
Pressure Rating
1000PSI
Body Material
ASTM A351 CF8M
Port
Reduced Port
Ball Material
ASTM A351 CF8M
End Connection
Threaded End
Seat Material
15% R-PTFE
Designs
Investment Casting Made / Blow-out Proof Stem / Mounting Pad ISO 5211 / L port, T port
Stem Material
AISI 316
Options
Full port / Locking device / No Mounting Pad / Anti-Static device
Applications
Process, Pipeline, OEM Equipment
- Versatile Flow Direction featuring 3-Way L-port and T-port configurations, allowing for precise fluid diversion, mixing, or isolation in complex industrial pipelines.
- Premium Corrosion Resistance utilizing high-grade ASTM A351 CF8M stainless steel construction paired with durable 15% R-PTFE seats, ensuring reliable, bubble-tight sealing up to a 1000 PSI pressure rating.
- Seamless Automation Integration engineered with a direct ISO 5211 Mounting Pad, enabling rapid and cost-effective actuator installation for modern OEM equipment.
- Enhanced System Safety equipped with a heavy-duty AISI 316 blow-out proof stem, which actively prevents stem ejection and protects personnel during severe pressure spikes.
- Advanced Customization Options offering maximum adaptability with available upgrades including a Full Port design, an Anti-Static device for grounding in flammable media handling, and a secure locking device for manual control safety.
This 3WAY multiport stainless steel ball valve from VALTEK (Shanghai), a trusted China valve manufacturer, is ideal for any demanding process or system, offering durability, efficiency, and reliable performance.
